Products > Drilling Equipment
Hydraulic Jar Type YSJ
Product Number: KW-DE-28 It can realize the stepless control of up jarring tonnage and should be used for up jarring fishing and coring.
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:

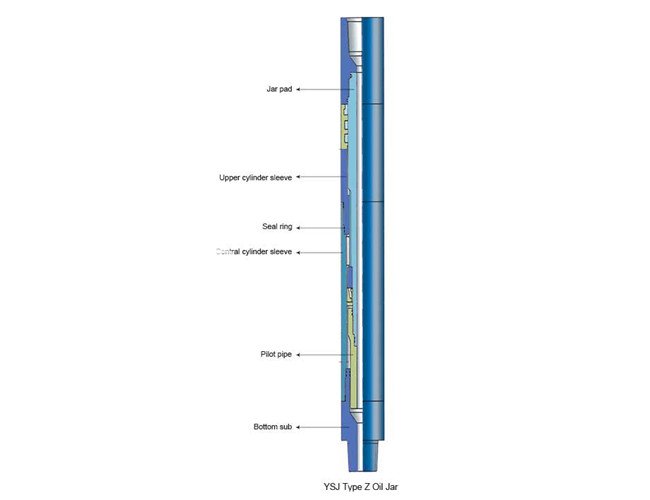

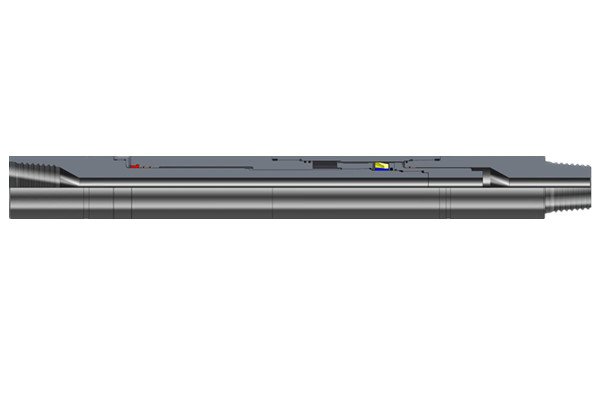

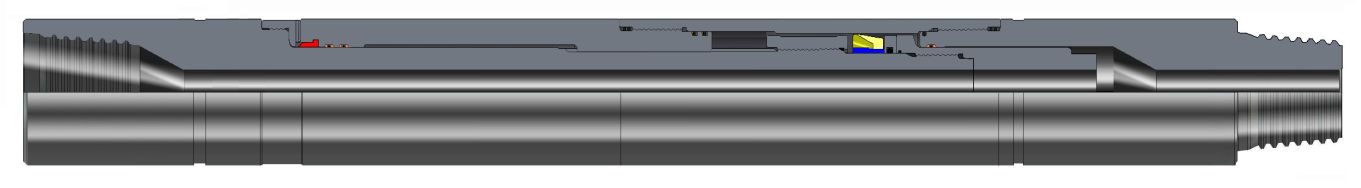

KINGWELL Hydraulic Jar Type YSJ
Its hydraulic construction can realize the stepless control of up jarring tonnage. The scope of time delay interval can be 30s～240s; the scope of service temperature can be -40℃～180℃. It can be used with Model YJQ Accelerator as for better effect. It should be used for up jarring fishing and coring.
KINGWELL Hydraulic Jar Type YSJ Technical Data:
| Model |
O.D. mm (in) |
I.D. mm (in) |
Max. Stroke mm (in) |
Connecti on API |
Allowable pullimg up load kN(lbf) |
Max working Load kN(lbf) |
Tensie Yield Strength kN(lbf) |
Max.Working Torgue kN· m(lbf·ft) |
Torsional Yield Strength kN· m(lbf·ft) |
length mm (in) |
| GS73 |
73 (2-7/8) |
20 (25/32) |
216 (8-1/2) |
2 3/8TBG |
120 (27000) |
300 (67000) |
500 (112000) |
3 (2200) |
4.5 (3320) |
1724 (67-7/8) |
| GS80 |
80 (3-1/8) |
25.4 (1) |
216 (8-1/2) |
2 3/8TBG |
150 (34000) |
350 (78000) |
600 (135000) |
3 (2200) |
6 (4400) |
1724 (67-7/8) |
| GS89 |
89 (3-1/2) |
28 (1-1/8) |
216 (8-1/2) |
NC26 |
180 (40000) |
450 (100000) |
700 (157000) |
3.5 (2600) |
7 (5200) |
1724 (67-7/8) |
| GS95 |
95 (3-3/4) |
28 (1-1/8) |
305 (12) |
NC26 |
200 (45000) |
600 (135000) |
1000 (225000) |
4 (2950) |
8 (5900) |
2041 (80-3/8) |
| YSJ40 |
102 (4) |
31.8 (1-1/4) |
229 (9) |
NC31 |
200 (45000) |
600 (135000) |
1000 (225000) |
4 (2950) |
8 (5900) |
1804 (71) |
| YSJ108 |
108 (4-1/4) |
38.1 (1-1/2) |
305 (12) |
NC31 |
250 (56000) |
800 (180000) |
1350 (303000) |
10 (7400) |
20 (14800) |
2041 (80-3/8) |
| YSJ44 |
114 (4-1/2) |
38.1 (1-1/2) |
286 (11-1/4) |
2 7/8REG |
250 (56000) |
800 (180000) |
1350 (303000) |
10 (7400) |
20 (14800) |
1986 (78-3/16) |
| YSJ121 |
121 (4-3/4) |
50.8 (2) |
290 (11-1/2) |
NC38 |
350 (79000) |
1000 (225000) |
1500 (340000) |
15 (11000) |
27 (20000) |
2114 (83-1/4) |
| YSJ62 |
159 (6-1/4) |
57.2 (2-1/4) |
376 (14-3/4) |
NC50 |
700 (160000) |
1600 (360000) |
2500 (560000) |
25 (18000) |
65 (48000) |
2690 (105-15/16) |
|
YSJ70 Ⅲ |
178 (7) |
60.3 (2-3/8) |
376 (14-3/4) |
NC50 |
800 (180000) |
2400 (540000) |
4000 (900000) |
30 (22000) |
80 (59000) |
2616 (103) |
| YSJ80 |
203 (8) |
71.4 (2-13/16) |
376 (14-3/4) |
6 5/8REG |
1000 (225000) |
2800 (630000) |
4900 (1100000) |
35 (26000) |
145 (100000) |
2616 (103) |
| YSJ229 |
229 (9) |
95 (3-3/4) |
376 (14-3/4) |
7 5/8REG |
1200 (270000) |
3000 (670000) |
6000 (1350000) |
35 (26000) |
160 (118000) |
2666 (105) |
