KINFWELL F-2200 Features & Benefits

Description

F-2200 HL Mud Pump manufacturing according to API SPEC 7k standard《Drilling and Well Servicing Equipment Specification》
F-2200 HL horizontal type, triplex, single acting mud pump/piston pump,Advanced structure,  high reliability,great interchangeability and easy for maintenance etc.
Mainly consist of power system and fluid end,power system:frame,pinion shaft,crankshaft,cross head,intermediate draw bar etc;Fluid end:hydraulic cylinder, valve assy,liner,piston,plunger,inlet/outlet pipeline.

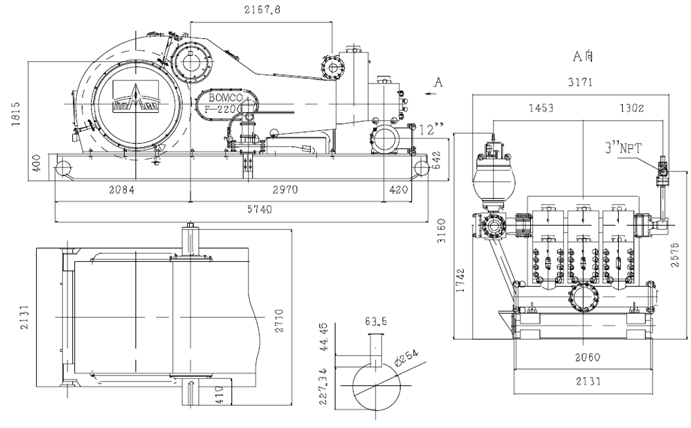

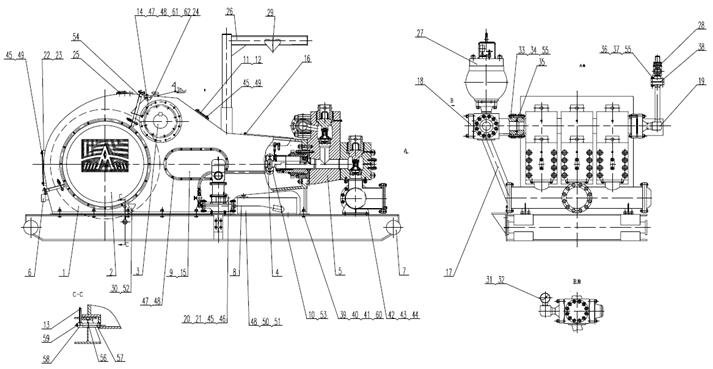

Dimension


F-2200HL Mud Pump Specification
Type horizontal,triplex, single acting piston pump(Liner piston can be used for low pressure)
Rated PowerKW 1640
Rated Pump Speedr/min 105
Strokemm 356
Max.liner Dia.mm 230
Gear Type Herringbone gear
Gear Ratio 3.5122:1
Suction Inletmm Flange305
Discharge Inletmm 130(70MPa)
Pinion Shaft Dia.mm 254
Pinion Shaft Lengthmm 410
keyed Jointmm 63.5*44.45
Valve Chamber Sizemm API-8# L-Type
Overall Dimension (L*W*H) (mm) 5740*3021*3160
Width of Machine Basemm 2131
WeightKG 43080

F-2200HLMud Pump Performance Parameter
liner Dia.,mm 230 220 210 200 190 180 170 **160 **150 **140 **130
Rated Pressure,MPa 19.0 20.8 22.8 25.1 27.9 31.0 34.8 39.3 44.7 51.3 52.0(max)
Stroke r/min Rated Power KW Output,L/s
*105 *1640 77.65 71.05 64.37 58.72 52.99 47.56 42.42 37.58 33.03 28.77 24.81
90 1406 6656 60.90 55.49 50.33 45.42 40.77 36.36 32.21 28.31 24.66 21.26
80 1250 59.16 54.13 49.32 44.74 40.37 36.24 32.32 28.63 25.16 21.92 18.90
70 1094 51.76 47.36 43.16 39.14 35.33 31.71 28.28 25.05 22.02 19.18 16.54
60 937 4437 40.60 36.99 33.55 30.28 27.18 24.24 21.47 18.87 16.44 14.18
1   0.7395 0.6766 0.6165 0.5592 0.5047 0.4530 0.4040 0.3579 0.3146 0.2740 0.2363
