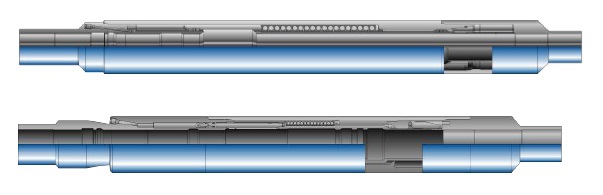

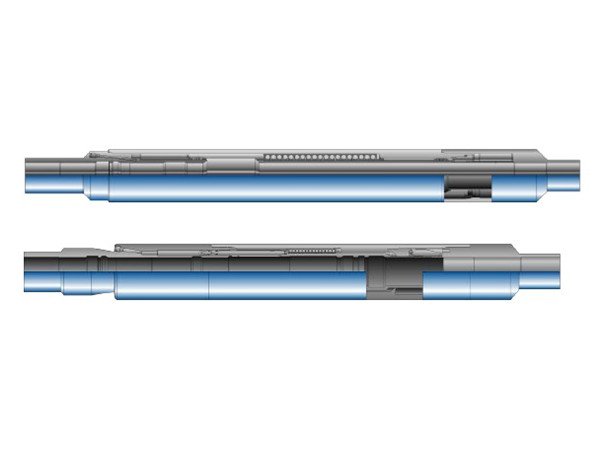

Tubing -Retrievable Safety Valves

Kingwell Type Tubing Retrievable Safety Valves are self-equalizing, flapper type safety valve designed to shut in a well at a point below the surface. The safety valve is a surface controlled, subsurface safety valve and is normally closed. The valve is held open by hydraulic control pressure and remains open until the control-line pressure is exhausted. The hydraulic control pressure is transmitted from a remote location through a control line to operate the valve. The
valves are value engineered to provide long-lasting, safe, and reliable operation.

Rod Piston Safety Valves are designed and built for performance and reliability. The rugged hydraulic actuator of the safety valve provides durability and isolates the internal workings from well fluids through its unique construction. The metal-to-metal sealing integrity in the body joints and closure mechanism places it in a premium valve category while featuring an economical price. The simple, compact design enhances the valve's overall reliability and provides for trouble-free operation. Rod piston safety valves are available with working pressure rating to 10000psi.

Single Rod Piston Safety Valves are used a single rod piston with reliable spring-energized, no-elastomer dynamic seals; a stacic, full-closed, metal to metal seal. The valves are designed for general production with enhanced reliability and long life. The valves provide reduced OD, premium piston system, deep set design and many other optional features. Single Rod piston safety valves are available with working pressure rating to 10000psi and always be used in the wells with extreme down hole conditions.

Features and Benefits

Simple, compact design
Single Rod Piston type with Non-elastomer dynamic piston seals
Rod Piston type with unique hydraulic actuation(single-piece piston/flow tube)
Metal-to-metal seal in closed position
Positive debris barrier at both ends of flow tube
Flapper sealing verified to sand service (no resilient seal required)
Minimized potential leak paths
Optimum reliability
Superior well containment and safety
Low friction, smooth operation
Critical component isolated from well environment
Enhanced debris isolation and tolerance

Applications

General production completion
Hostile well environments in compatible with elastomer

Technical Data

Tubing Size Max.OD Internal Packing Bore Pressure Rating
in. mm in. mm in. mm psi MPa
2 3/8 60.3 3.7 93.38 1.875 47.63 5,000 34.5
3.97 100.84 10,000 69
2 7/8 73 4.65 118.11 2.125-2.312 53.98-58.72 5,000 34.5
4.74 120.24 10,000 69
4.91 124.71 10,000 69
3 1/2 88.9 5.2 132.08 2.562-2.812 65.07-71.42 5,000 34.5
5.37 136.4 10,000 69
5.62 142.75 10,000 69
4 1/2 114.3 6.73 170.94 3.750-3.812 95.25-96.82 5,000 34.5
6.97 177.04 7,500 51.7
5 1/2 139.7 7.65-9.50** 194.31-241.3 4.313-4.75   5000-10000 34.5-68.9
7 177.8 8.375-10.50** 212.7-266.7 5.75-6.00   5000-10000 34.5-68.9

* Other profile and seal bore size available depending on tubing size selected and request.
** Depend on material and pressure rating.
