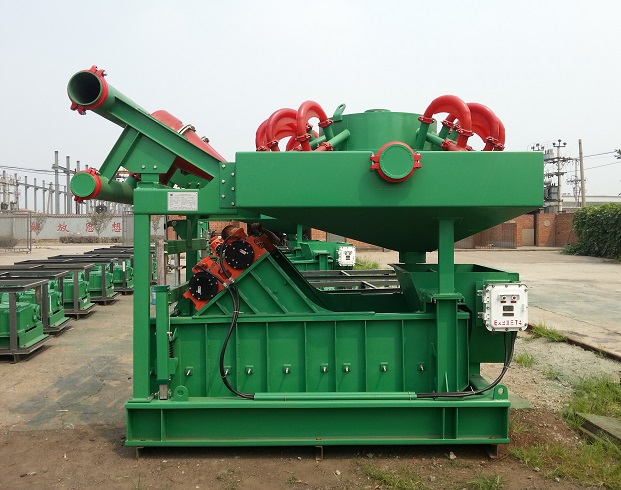

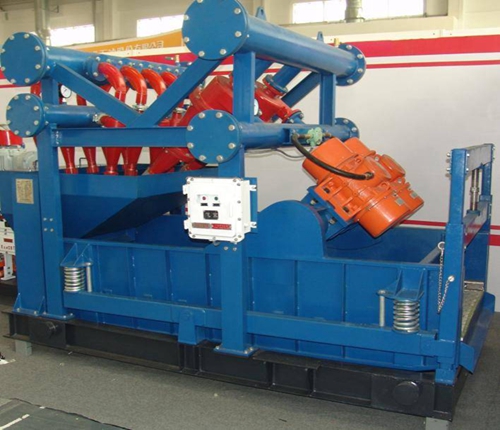

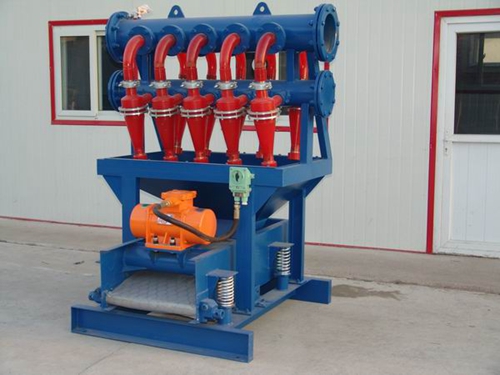

Mud Cleaner

Product Number: KW-SC-03

We're here to help:
Easy ways to get the answers you need.

  • +86-029-88601839
  • +86-029-88601839
  • Follow Us:
KINGWELL Mud Cleaner Features & Benefits:

Mud cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.
KINGWELLMud Cleaner Technical Data:
 Model KWZJ85-1S8N KWZJ70-2S12N KWZ3P-2S12N KWZJ4P-3S16N
Capacity 112m³/h(492GPM) 240m³/h(1056GPM) 240m³/h(1056GPM) 336m³/h(1480GPM)
Desander cones 1×10"(250mm)  2×10"(250mm)  2×10"(250mm) 3×10"(250mm)
Desilter cones 8×4"(100mm) 12×4"(100mm) 12×4"(100mm) 16×4"(100mm)
Vibrating Mode Linear Motion
Matching Pump 37kw 55kw 55kw 75kw
Matching Shaker  BWZS85-2P  BWZS70-3P  BWZS-3P  BWZS-4P
Shaker Motor 2×1.0kw  2×1.5kw  2×1.5kw 2×1.865kw
Screen Area 2.1m² 2.6m² 2.1m² 2.7m²
Screen of Deck 2 Pcs 3 Pcs 3 Pcs 4 Pcs
Weight 1580kg 2150kg 1980 kg 2350 kg
Dimension 1975×1884×1585mm  2403×1884×2195mm 2030×1965×2240mm 2600×1945×2240mm
Remark 4”cyclone each capacity 15~20m³/h, 10" cyclone each capacity 90~120m³,  cone quantity according to the fl
