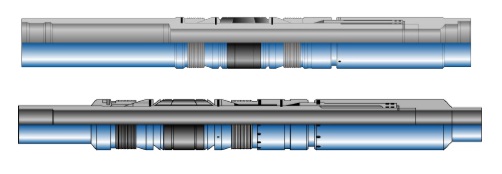

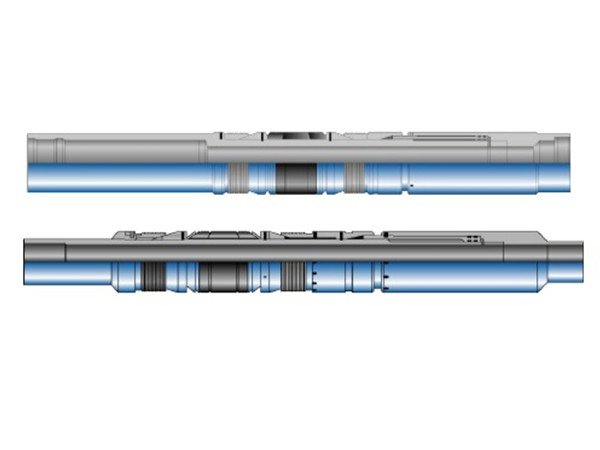

KWHSPP Hydraulic Set Permanent Packer

KINGWELL KWHSPP Packer is designed for use in applications where one trip to completion and frac is required. The packer is a hydraulic set single trip permanent millable packer with smaller OD feature is used for restrict ID casing or smaller size frac string. The packer can with Top Tubing Thread or Latch Thread. Bottom sub threaded for mill-out extension or the customer's liner. The packer design around a proven base of sealing integrity, slip anchoring system and utilizes an integral one-piece mandrel with only three pressure sealing threads within the assembly. The packer is designed with premium seal for severe down hole environments such as sour and HPHT. The Packer is designed to be milled if removal from the wellbore required. Firstly remove the Sur-latch seal nipple from packer by tubing string, right-hand rotation with tension on the tubing to disengage the Sur-Latch from the packer head.

Features and Benefit

Field proved reliable

Simple to operation

Designed for most severe completion environments

For high pressure and high temperature completions

Large ID

Designed for high tensile loads

Metal to metal premium thread connection, or seal anchor assembly

Single piece mandrel and seal bore

Minimized potential leak paths

Up to 15ksi rate

Applications

Single trip production and injection wells

High deviated and horizontal completion wells

High pressure and high temperature wells

Extreme completion environments such as sour gas

Frac and stimulation

Act as a tubing hanger

Technical Data

Casing Size		Casing Weight		Packer OD		Packer ID		Sealbore ID
in.	mm	lb/ft	kg/m	in.	mm	in.	mm	in.	mm
5	127.00	15-21	22.32-31.25	3.96	100.58	1.91	48.51	3.12	79.25
5 1/2	139.70	14-20	20.83-29.76	4.54	115.32	2.36	59.94	3.50	88.90
5 1/2	139.70	23-26	34.22-38.69	4.36	110.74	2.36	59.94	3.50	88.90
6 5/8	168.28	17-32	25.30-47.62	5.47	138.89	3.17	80.52	4.25	107.95
6 5/8	168.28	17-20	25.30-29.76	5.88	149.23	3.88	98.43	5.00	127.00
7	177.80	17-23	25.30-34.22	6.80	156.97	3.17	80.52	4.25	107.95
		17-20	25.30-29.76	6.25	158.75	3.88	98.43	5.00	127.00
		20-32	29.76-47.62	5.88	149.25	3.88	98.55	5.00	127.00
		32-38	47.62-52.09	5.55	140.97	3.02	76.71	4.25	107.95
		32-44	47.62-65.48	5.47	138.89	3.02	76.71	4.25	107.95
7 5/8	193.68	26.4-39	39.29-59.04	6.38	161.95	3.88	98.55	5.00	127.00
		33.7-45.3	50.15-67.41	6.17	156.72	3.88	98.55	5.00	127.00
		33.7-47.3	50.15-70.39	6.18	156.97	3.17	80.52	4.25	107.95
9 5/8	244.48	36-59.4	53.57-88.40	8.13	206.40	4.85	123.19	6.50	165.10
		40-47	59.53-69.94	8.42	213.87	6.00	152.40	7.00	177.80
		53.50	79.62	8.31	211.07	6.02	152.98	7.25	184.15
10 3/4	273.05	55.5-60.7	82.59-90.33	9.28	235.71	6.00	152.40	7.00	177.80
10 3/4	273.05	60.7-65.7	90.33-97.77	9.28	235.71	6.00	152.40	7.00	177.80
