Products > Drilling Equipment
Overshot
Product Number: KW-DE-15 Releasing and circulating overshot is the special external fishing tool used for fishing drill collar ,drill pipe,tubing and other fishes in drilling and workover operation
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Overshot Features & Benefits:
KINGWELL Overshot Technical Data:

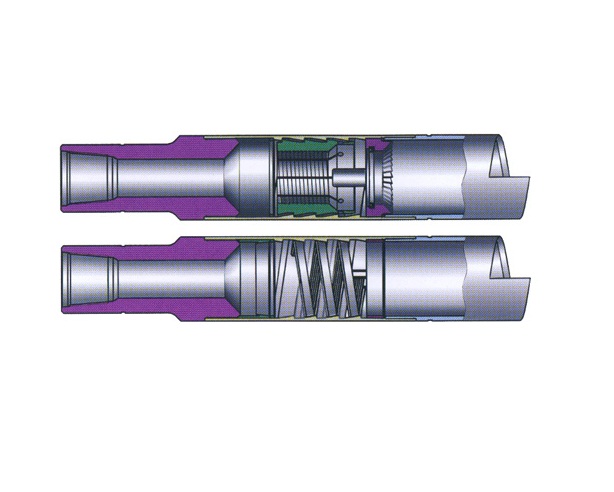

The KINGWELL releasing and circulating overshot is the special external fishing tool used for fishing drill collar ,drill pipe,tubing and other fishes in drilling and workover operation.
It is designed according to the sizes of drill collar,drill pipes, couplings and other oil well tubes. When fish is gripped but can not be released , the releasing overshot is used to release the fish and lift it up to the ground.

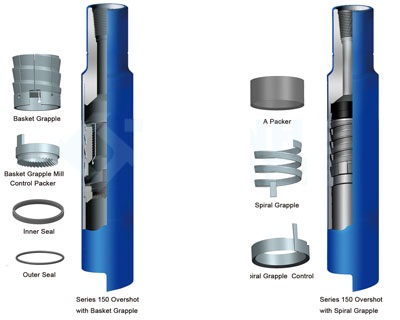

Releasing and Circulating Overshot consists of three main external parts: a Top Sub, a Bowl, and a Guide
| O.D. | Max. Catch size of Spiral Grapple | Max. Catch Size of Basket Grapple | Connection | |
| Model | mm(in) | mm(in) | mm(in) | |
| API | ||||
| LT/S-T76B | 89(3 1/2) | 65(2 9/16) | 50.8(2) | NC26 |
| LT/S-T86B | 92(3 5/8) | 65(2 9/16) | 50.8(2) | NC26 |
| LT/S-T92B | 102(4) | 73(2 7/8) | 63.5(2 1/2) | NC26 |
| LT/S-T102B | 105(4 1/8) | 82.6(3 1/4) | 69.9(2 3/4) | NC31 |
| LT/S-T114B | 111(4 3/8) | 88.9(3 1/2) | 63.5(2 1/2) | NC26 |
| LT/S-T124B | 117(4 5/8) | 88.9(3 1/2) | 76.2(3) | NC31 |
| LT/S-T140B | 133(5 1/4) | 104.8(4 1/8) | 95.3(3 3/4) | NC38 |
| LT/S-T76B | 140(5 1/2) | 117.5(4 5/8) | 105(4 1/8) | NC38 |
| LT-T143 | 143(5 5/8) | 121(4 3/4) | 108(4 1/4) | NC38 |
| LT-T168 | 168(6 5/8) | 127(5) | 114.3(4 1/2) | NC46 |
| LT-T178 | 178(7) | 123.8(4 7/8) | 114.3(4 1/2) | NC46 |
| LT-T187 | 187(7 3/8) | 146(5 3/4) | 127(5) | NC50 |
| LT-T194 | 194(7 5/8) | 159(6 1/4) | 127(5) | NC50 |
| LT-T200 | 200(7 7/8) | 159(6 1/4) | 141(5 9/16) | NC50 |
| LT-T206 | 206(8 1/8) | 178(7) | 159(6 1/4) | NC50 |
| LT-T219 | 219(8 5/8) | 178(7) | 159(6 1/4) | NC50 |
| LT-T225 | 225(8 7/8) | 197(7 3/4) | 184.2(7 1/4) | NC50 |
| LT-T232 | 232(9 1/8) | 203(8) | 187(7 3/8) | NC50 |
| LT-T245 | 245(9 5/8) | 203(8) | 190.5(7 1/2) | 6 5/8REG |
| LT-T254 | 254(10) | 203(8) | 190.5(7 1/2) | 6 5/8REG |
| LT-T270 | 270(10 5/8) | 228.6(9) | 209.5(8 1/4) | 6 5/8REG |
| LT-T273 | 273(10 3/4) | 228.6(9) | 203(8) | 6 5/8REG |
| LT-T286 | 286(11 1/4) | 245(9 5/8) | 225.5(8 7/8) | 6 5/8REG |
| LT-T298 | 298(11 7/8) | 254(10) | 235(9 1/4) | 6 5/8REG |
| LT-T340 | 340(13 3/8) | 279(11) | 228.6(9) | 7 5/8REG |
| LT-T350 | 350(13 3/4) | 204.8(12) | 285.8(11 1/4) | 6 5/8REG |
