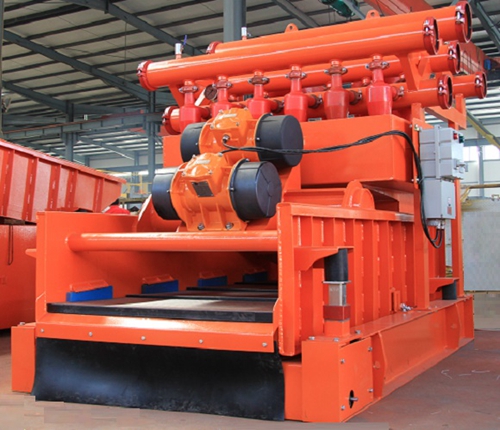

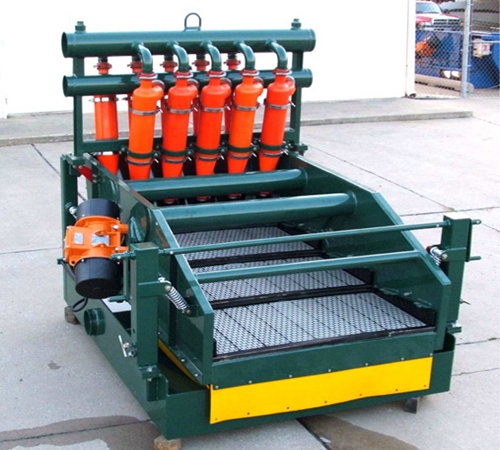

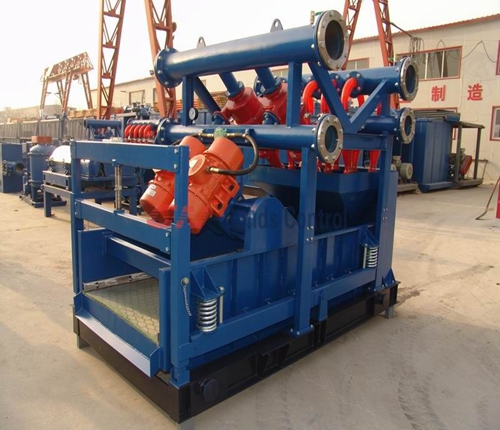

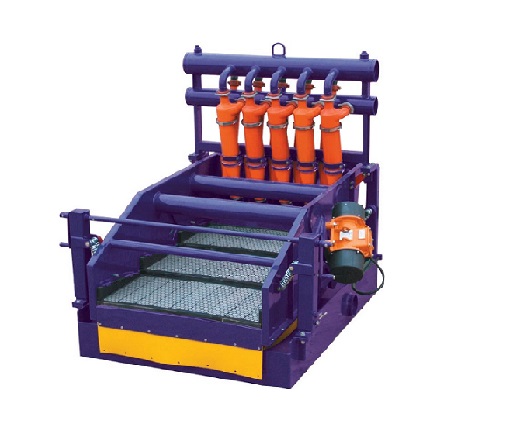

KINGWELL Desilter Features & Benefits:

Desilter is the third class solids control equipment to treat the drilling fluids. And used as the third-control equipment in drilling operation. We commonly used 5 "and 4" cone to separate solid-phase particle size 15-47μm in the drilling fluid. Based on customer requirements and capacity, we can select groups of cone into desilter.

Features:

1. 100% Polyurethane ( PU ) material to make desilter cones for longer lifespan
2. Clamp type for easy maintenance
3. Compact design with small footprint.
4. Flexible options for 8, 10, 12, 16 or 20 pieces of 4" or 5" cones for different capacities.
5. Flexible fast connection is available for user assembly.

KINGWELL Desilter Technical Data:

Model KWCN60 KWCN90 KWCN120 KWCN200 KWCN240 KWCN320
Treating capacity 60m³/h 90m³/h 120m³/h 200m³/h 240m³/h 320m³/h
Cones 4“x4 4”x6 4”x8 4”x10 4”x12 4”x16
Working pressure 0.25~0.45MPa
Separation point 15~47μm
Bottom shaker KWZS series shake
Vibration track Linear or BEM
Vibrator motor speed 1500rpm or 1800rpm
Dimension 1500x1200x1900mm 2300x1700x2200mm 2600x1800x2200mm
Weight 750KG 800KG 850KG 900KG 950KG 1050KG
Remark 4“ cone =12~15m3/h
According to clients’ demand configure cones
