KINGWELL F-1600HL Mup Pump Features & Benefits

Description
F-1600HL Mud Pump manufacturing according to API SPEC 7k standard《Drilling and Well Servicing Equipment Specification》
F-1600HL horizontal type, triplex, single acting mud pump/piston pump,Advanced structure,  high reliability,great interchangeability and easy for maintenance etc.
Mainly consist of power system and fluid end,power system:frame,pinion shaft,crankshaft,cross head,intermediate draw bar etc;Fluid end:hydraulic cylinder, valve assy,liner,piston,plunger,inlet/outlet pipeline.

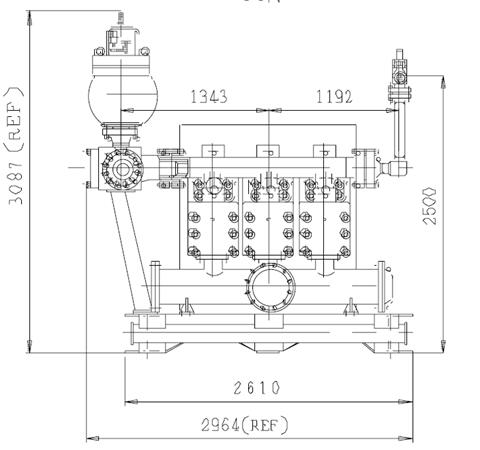

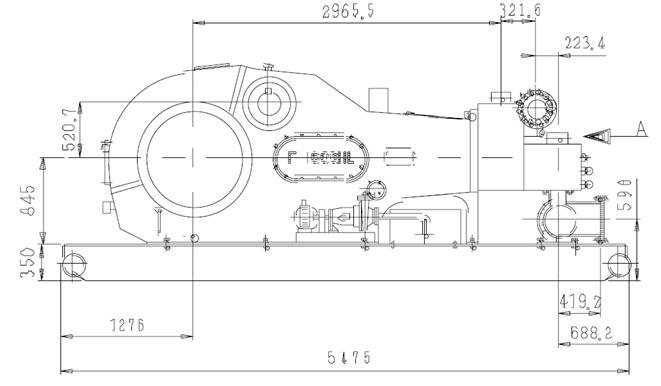

Dimension


F-1600HL Mud Pump Specification

No.	model	F-1600HL
1	Type	Horizontal,triplex, single acting piston pump
2	Rate Power（KW）	1180
3	Rated Pump Speed（min-1）	120
4	Stroke（mm）	304.8
5	Gear Type	Herringbone Gear
6	Gear Ratio	4:206:1
7	Suction Inlet（mm）	305
8	Discharge Inlet（mm）	130Flange（70Mpa）
9	Pinion Shaft Dia.（mm）	215.9
10	Pinion Shaft Length（mm）	337
11	keyed Joint（mm）	50.8×50.8
12	Valve Chamber Size（mm）	API-7#
13	Overall Dimension (L*W*H)（mm）	5475×2964×3087
14	Width of Machine Base（mm）	2610
15	Weight（Kg）	29535

F-1600HL Mud Pump Performance Parameter

liner Dia.，（mm）		190	180	170	160	150	*140	*130	*120
Rated Pressure，MPa		20.7	23	25.8	29.2	33.2	38.1	44.2	51.9
Stroke r/min	Rated Power KW	Output，L/s
130	1275	56.17	50.42	44.79	39.83	35.01	30.5	26.31	22.42
*120	1176	51.85	46.54	41.51	36.77	32.32	28.15	24.27	20.68
110	1078	47.52	42.66	38.05	33.71	32.32	25.81	22.26	18.97
100	980	43.2	38.78	34.59	30.64	26.93	23.46	20.24	17.25
90	882	38.88	34.9	31.13	27.58	24.24	21.11	18.21	15.52
80	748	34.56	31.02	27.67	24.51	21.54	18.77	16.19	13.8
1		0.43208	0.3878	0.3459	0.3064	0.2693	0.2346	0.2024	0.1725

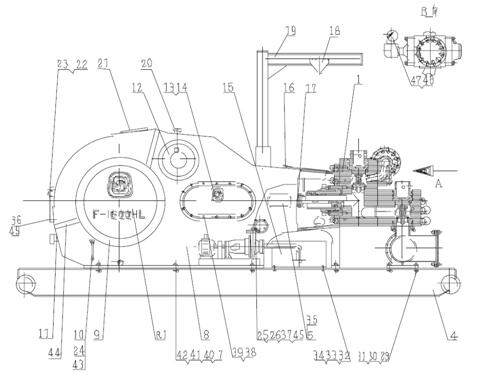

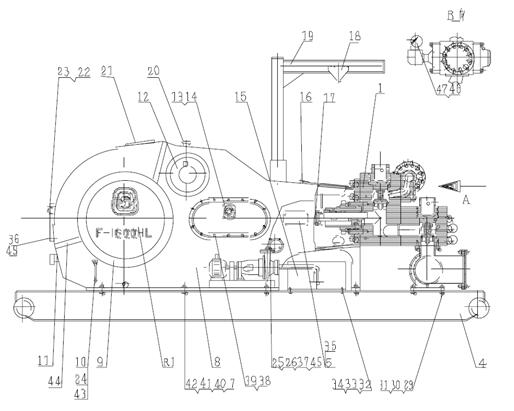

F-1600HL Mud Pump General Drawing
