Lubricated Fishing Bumper Sub Type BXJ
Product Number: KW-DE-30 It should be filled with wearable hydraulic oil, acting the lubrication as to prolong the service life.
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:

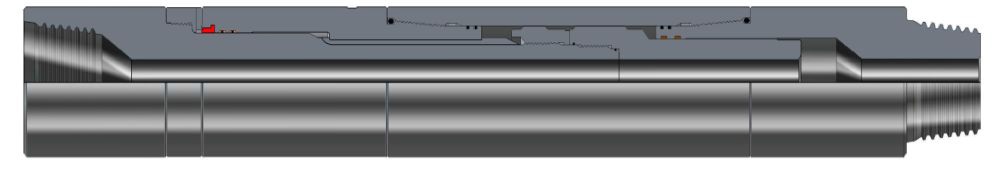

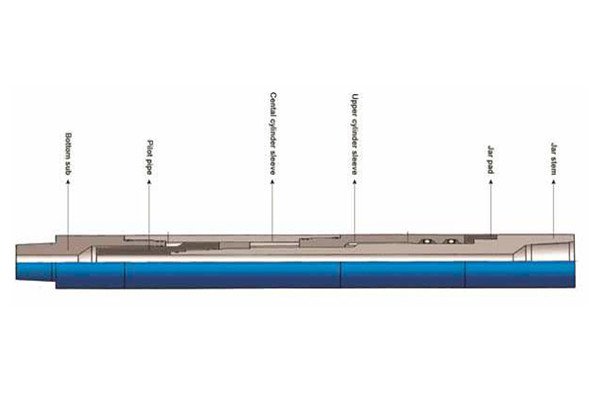

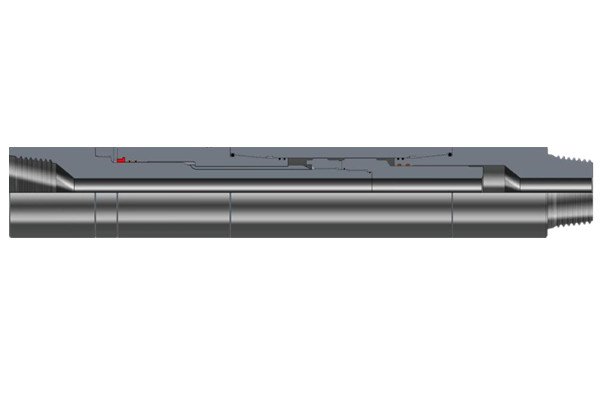

KINGWELL Lubricated Fishing Bumper Sub Type BXJ
The working chamber of Model “BXJ” Lubricated Fishing Bumper Sub should be filled with wearable hydraulic oil, acting the lubrication as to prolong the service life. It has a long stroke and
large jarring force. According to specific instance, the releasing stuck of down-jarring should be different on various occasions.
KINGWELL Lubricated Fishing Bumper Sub Type BXJ Technical Data
KINGWELL Lubricated Fishing Bumper Sub Type BXJ Technical Data
| Model |
O.D. mm(in) |
I.D. mm(in) |
Connection API |
Max working load kN(lbf) |
Tensie Yield Strength kN(lbf) |
Max working Torgue kN·m(lbf · ft) |
Torsional Yield Strength kN·m(lbf · ft) |
Max. Stroke mm(in) |
Overall length in open state mm(in) |
| BXJ73 |
73 (2-7/8) |
20 (13/16) |
2 3/8TBG |
300 (67440) |
500 (112400) |
2.6 (1916) |
4.5 (3317) |
268 (10-1/2) |
2105 (82-7/8) |
| BXJ89 |
89 (3-1/4) |
28 (1-1/8) |
NC26 |
450 (101160) |
750 (168600) |
3.5 (2580) |
7 (5161) |
268 (10-1/2) |
2105 (82-7/8) |
| BXJ95 |
95 (3-3/4) |
31.8 (1-1/4) |
NC26 |
600 (134880) |
1000 (224800) |
4 (2949) |
8 (5898) |
266 (10-1/2) |
2103 (82-13/16) |
| BXJ105 |
105 (4-1/8) |
31.8 (1-1/4) |
NC31 |
1362 (306177) |
2044 (459491) |
11.5 (8478) |
20 (14746) |
400 (15-11/16) |
2685 (105-11/16) |
| BXJ108 |
108 (4-1/4) |
31.8 (1-1/4) |
NC31 |
767 (172421) |
1151 (258744) |
5 (3868) |
20 (14746) |
268 (10-1/2) |
2105 (82-7/8) |
| BXJ114 |
114 (4 -1/2) |
38.1 (1-1/2) |
2 7/8REG |
1243 (279876) |
1866 (419476) |
13 (9584) |
25 (18400) |
268 (10-1/2) |
2100 (82-11/16) |
| BXJ121 |
121 (4-3/4) |
38.1 (1-1/2) |
NC38 |
1100 (247280) |
1950 (438360) |
13 (9584) |
27 (19900) |
405 (16) |
2690 (106) |
| BXJ159 |
159 (6-1/4) |
50.8 (1-7/8) |
NC50 |
1600 (359680) |
2700 (606960) |
25 (18400) |
65 (47924) |
466 (18-5/16) |
3229 (127) |
| BXJ178 |
178 (7) |
70 (2-3/4) |
NC50 |
2400 (539520) |
4650 (1045320) |
30 (22119) |
80 (58984) |
470 (18-1/2) |
3422 (134-11/16) |
| BXJ203 |
203 (8) |
78 (3-1/16) |
6 5/8REG |
2800 (629440) |
4896 (1100620) |
35 (25805) |
145 (106908) |
462 (18-3/16) |
3414 (134-3/8) |
