KINGWELL Perforators

Perforator refers to the blasting used in perforating equipment (perforating bullet, detonating fuse, detonating primer, detonator etc.) and the combinationof its parts.According to the structure is divided into a gun perforator and without the gun perforator.

Xi'an KINGWELL OILFIELD MACHINERY Co., Ltd. (KINGWELL), is a highly reputable manufacturer and supplier for oilfield equipment, also a outstanding service company for complete solutions to Oil & Gas industries.

With over 10 years developing, we were developed from the beginning drilling Service Company to factory that can produce Perforators with good quality.

Kingwell Perforators has the below kinds of products:

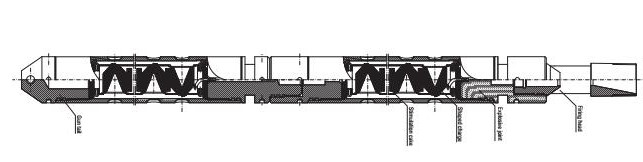

1. Stimulation Perforator
2. Beaming Perforator
3. Multi-pulse Stimulation Perforator

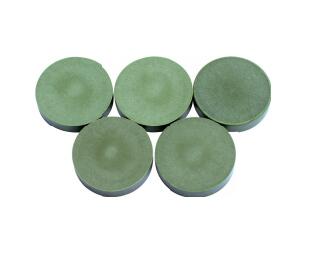

4. Prefixing Powder Cake
5. Stimulation Cake
6. Fracture Column
7. Horizontal Well Perforator
8. Detonating Cord Cutter
9.Booster Bayonet Pliers
4. Prefixing Powder Cake
5. Stimulation Cake
6. Fracture Column
7. Horizontal Well Perforator
8. Detonating Cord Cutter
9.Booster Bayonet Pliers

Hot Tags: Perforating gun slick gun scolloped gun TCP gun Wireline perforating Coiled tubing perforating High pressure perforating gun 80mm gun 86mm gun 114 gun


High pressure oil and gas Perforating Gun is made of high strength alloy steel pipes, which have the features of high precision, good performance, resistance to high temperature and high pressure etc., include normal pressure, high pressure, super-high pressure, reinforced ultra-high four categories, more than 100 kinds of models sorted by length, phase, shot density. According to need equipped with many type of perforating charge, used in the construction under the condition of different perforation.
 Technical Parameter:

No	Pressure level	Gun Model		OD(mm）	Wall thickness (mm)	Pressure(Mpa)	shot density (shot/m)	Phase(°)	Length(m)
		mm	in
1	Normal pressure	60	2.36	60	5.0	90	13、16、18、20	45、60、90、120、180	1.25、2.25、3.25
2		68	2.68	68	6.3	85
3		73	2.87	73	7.82	105			1.3、1.8、2.3、2.8、3.3、3.8
4		80	3.15	80	8.0	105
5		89	3.50	88.9	8.8	105			1.3、1.8、2.3、2.8、3.3、3.8、4.3、4.8、5.3、5.8、6.3、6.7
6		102	4.00	101.6	9.5	105
7		114	4.50	114.3	10.0	105
8		118	4.65	118	11.0	105
9		127	5.00	127	9.5	90			1.3、1.8、2.3、2.8、3.3、3.8、4.3
10		127	5.00	127	11.0	105
11		178	7.00	177.8	12.65	90
12	High pressure	42	1.65	42	5.0	140			1.25、2.25、3.25
13		51	2.01	51	5.0	140
14		73	2.87	73	9.0	140			1.3、1.8、2.3、2.8、3.3、3.8
15		83	3.27	83	9.0	140
16		86	3.37	85.7	9.5	140			1.3、1.8、2.3、2.8、3.3、3.8、4.3、4.8、5.3、5.8、6.3、6.7
17		89	3.50	88.9	10.0	140
18		102	4.00	101.6	11.0	140
19		127	5.00	127	13.0	140			1.3、1.8、2.3、2.8、3.3、3.8、4.3
20	Super-high pressure	89	3.50	88.9	12.0	175	20	60、90	1.3、1.8、2.3、2.8、3.3、3.8、4.3
21		121	4.76	121	15.0	175	16	60
22	reinforced ultra-high pressure	89S	3.50	88.9	12.0	210	20	60、90	1.3、1.8、2.3、2.8、3.3、3.8、4.3
