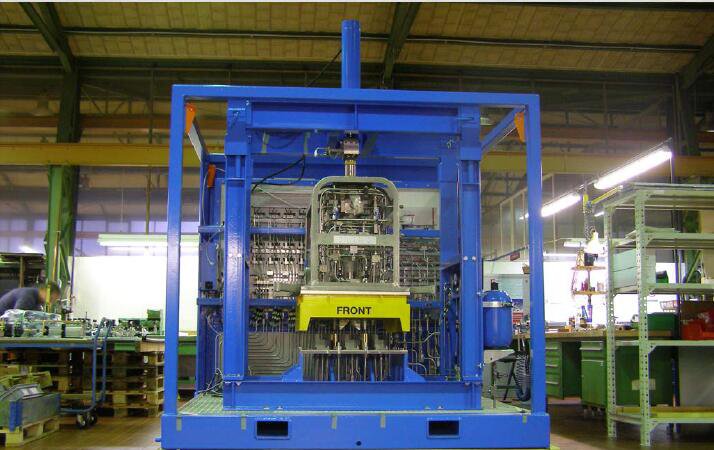

Sub Sea Control Test & Flushing Units
19/04/2016

Project Requirements
Application:
-Testing and Flushing of Sub Sea Equipment (e.g. SMC –Sub Sea Control Module)
-Digital Recording of miscellaneous test procedures (e.g. Pressure of different circles via CAN Bus)
Safety Requirements:
-Emergency Shut Down
-Visual and acoustic safety signals
-electric operated remote control
-Accumulators in accordance with ASME IX/PED with special safety design for safe maintenance

Standards and Regulations
AISC: Manual of Steel Construction
ANSI/AWS D1.1: Structural Welding Code
API RP 520: Recommended Practice for Design and Operation of Sub sea Production Systems
PD5500-2006 or PED 97/23/EC: Accumulator Requirements
ASME IX: Boiler and Pressure Vessel Code, Welding Qualifications
NAS1638 Superseded by:SAE AS4059 – 5B-F Cleanliness Requirements for Components used in Hydraulic Systems superseded by:Aerospace Fluid Power – Cleanliness Classification for Hydraulic Fluids
SAE J 514: Hydraulic Tube Fittings
SAE J 517: Hydraulic Hose & Hose Fittings

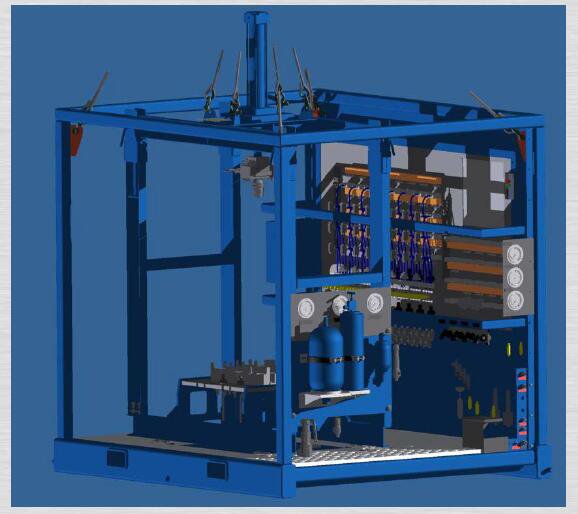

Framework Design

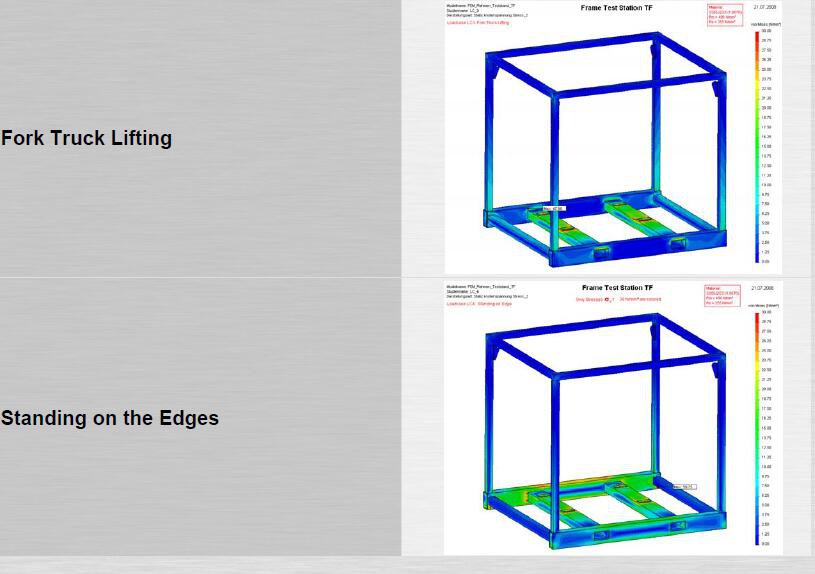

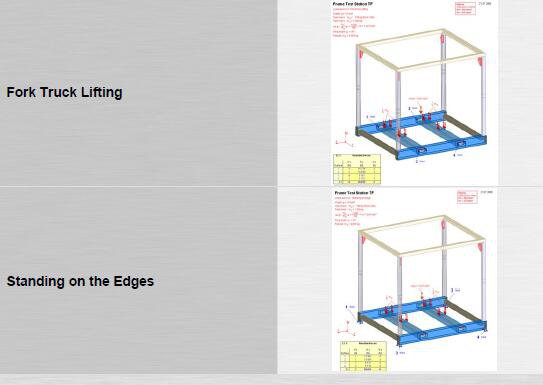

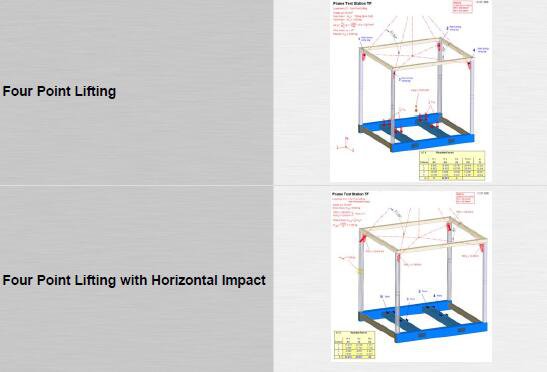

Framework Calculation

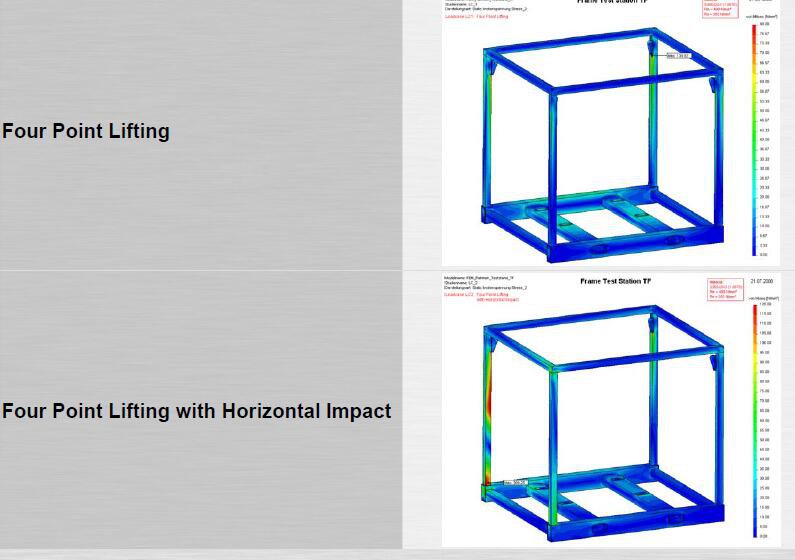

Framework Simulation



Framework Test
4-Point Load Test    Ultra Sonic Z-performance Test

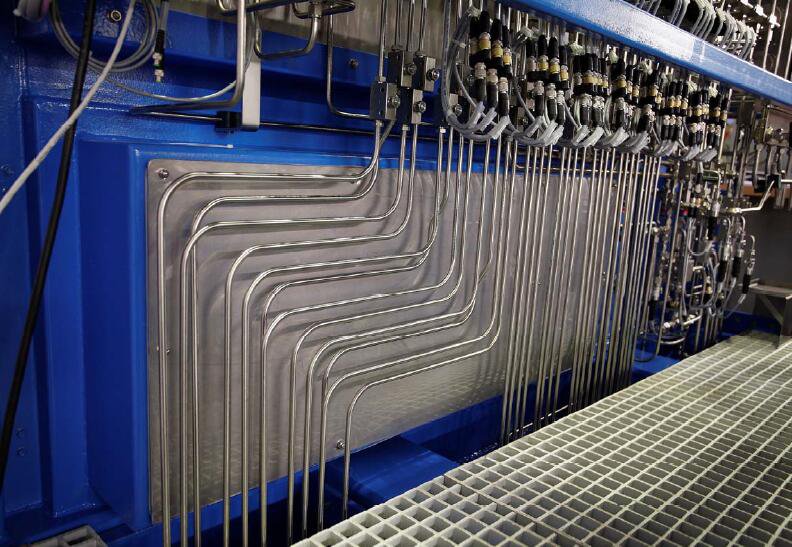

Pipe Work


Operation
